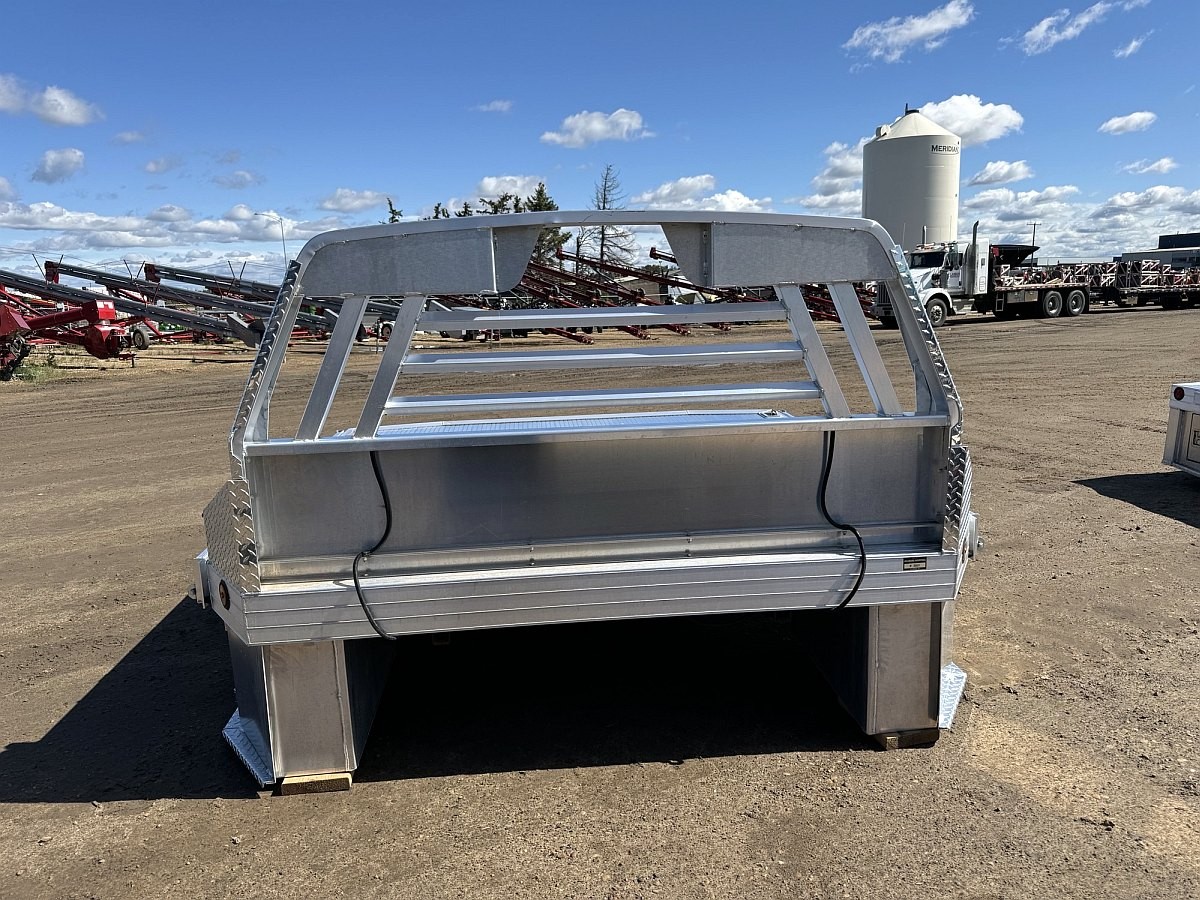

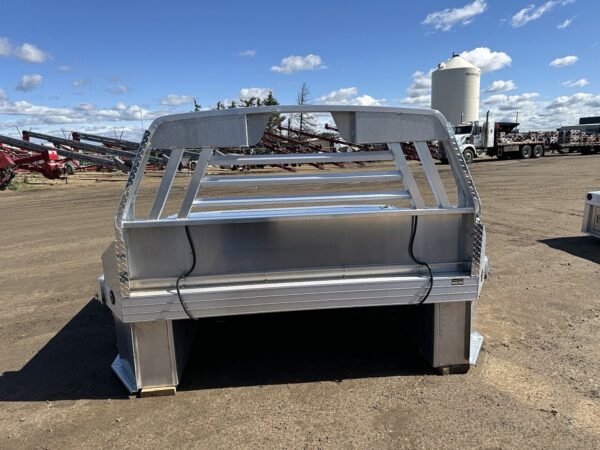

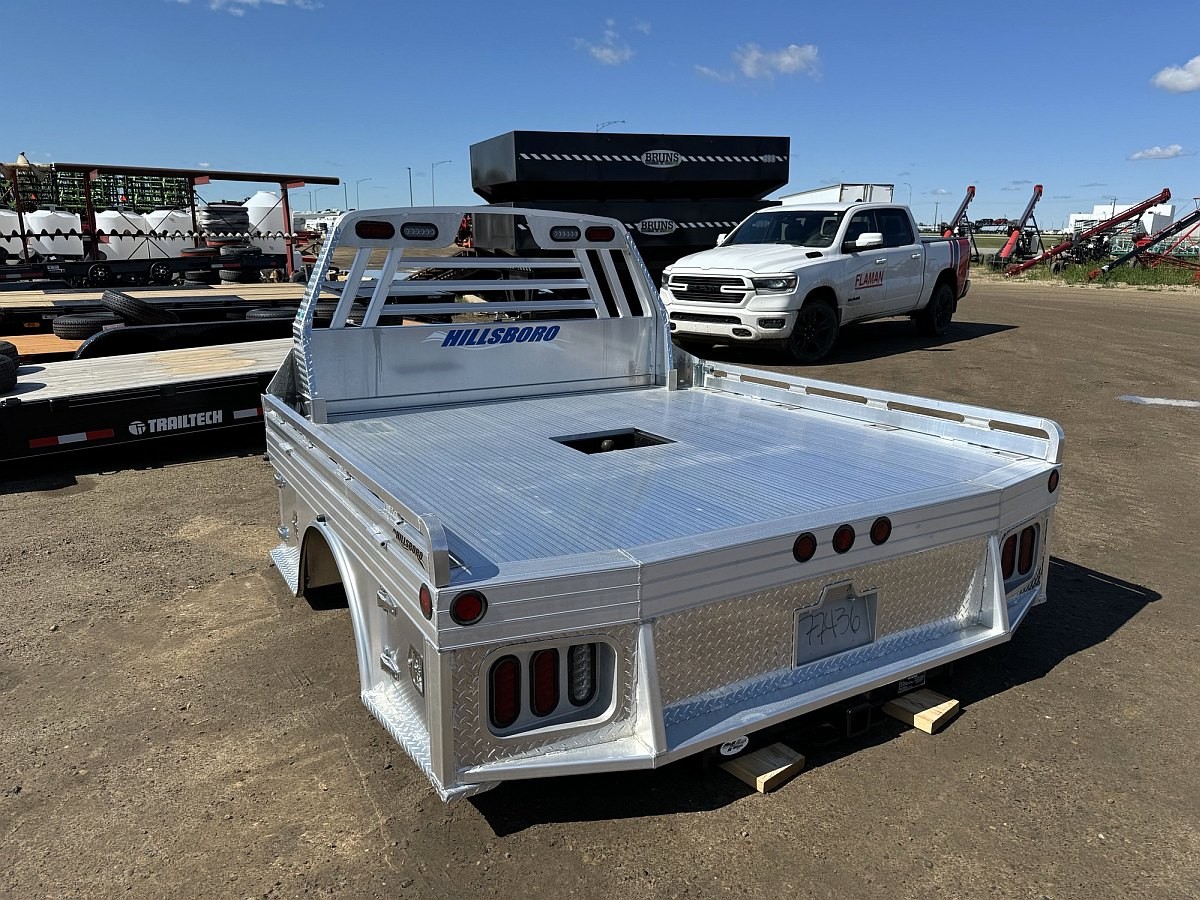

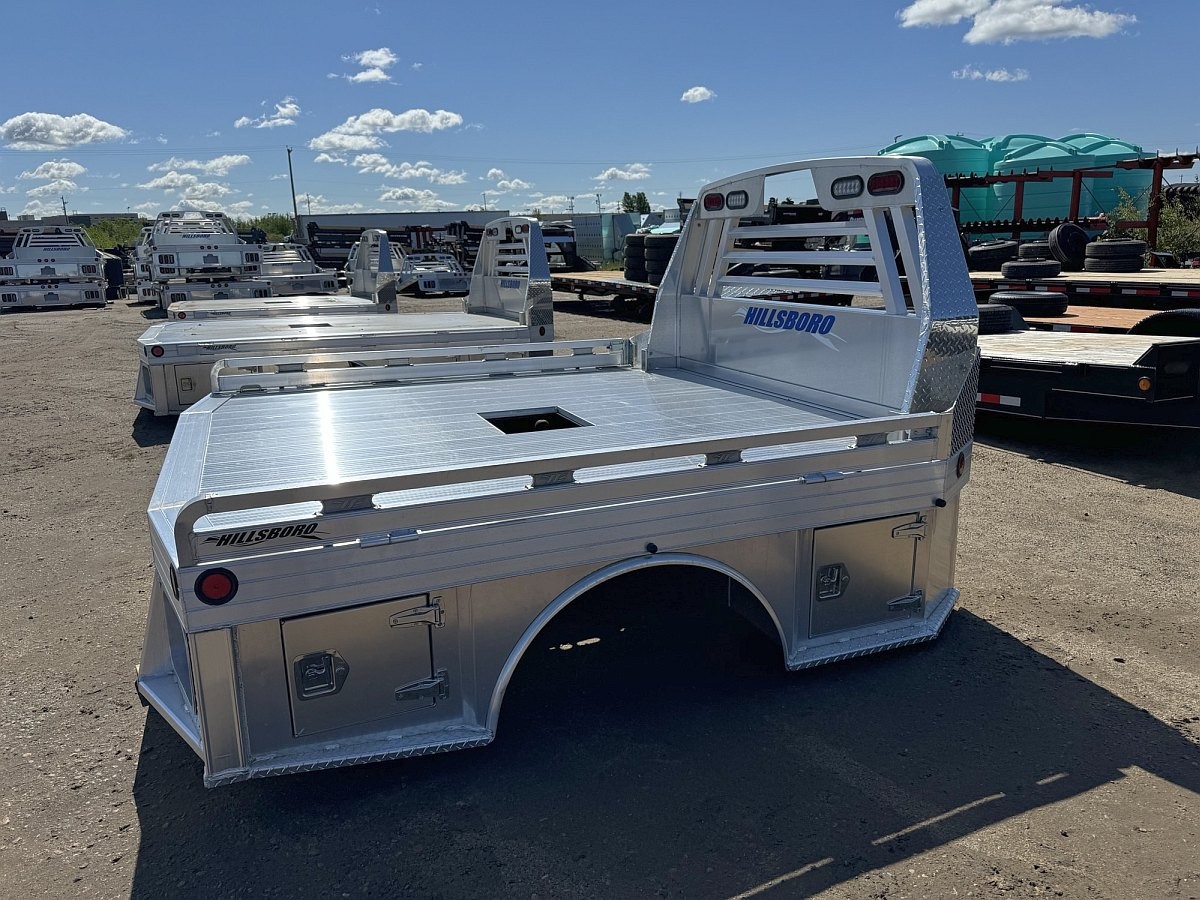

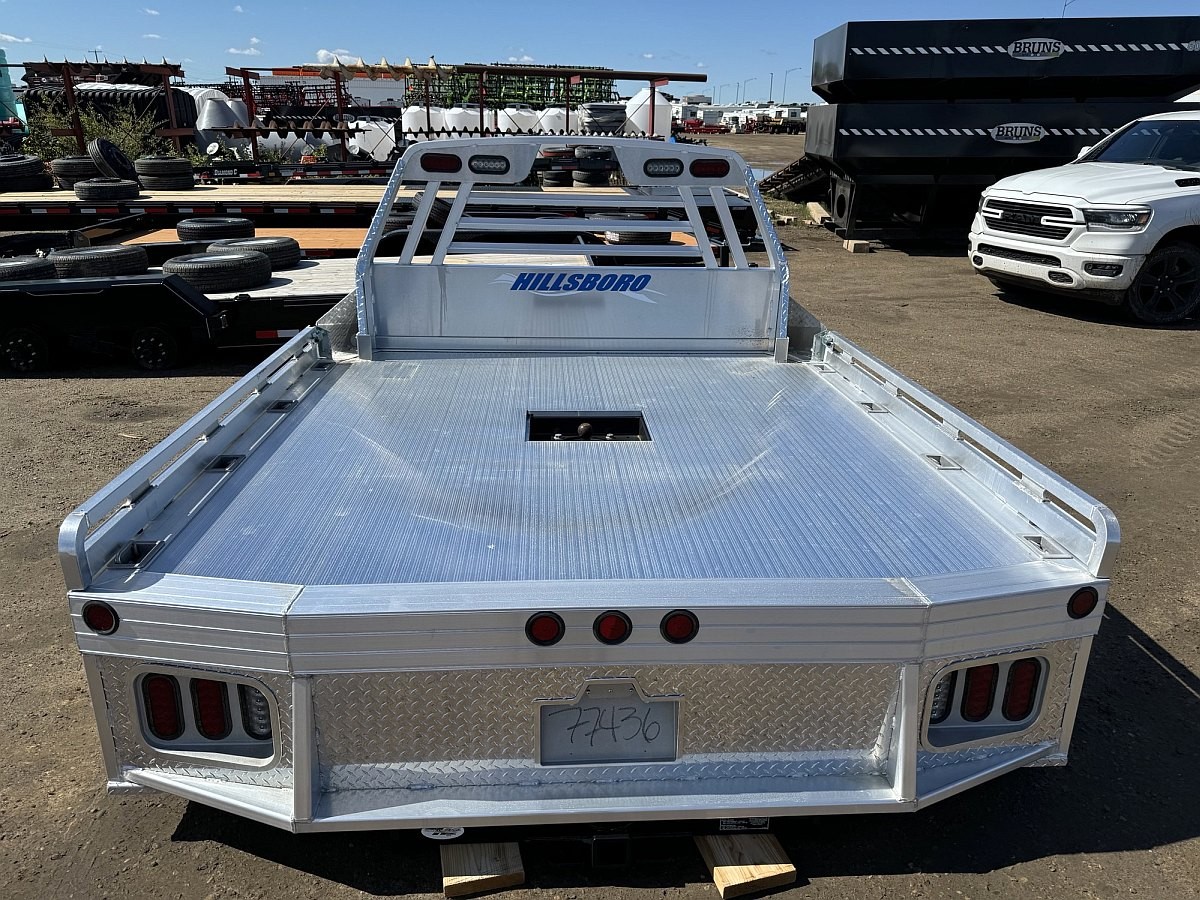

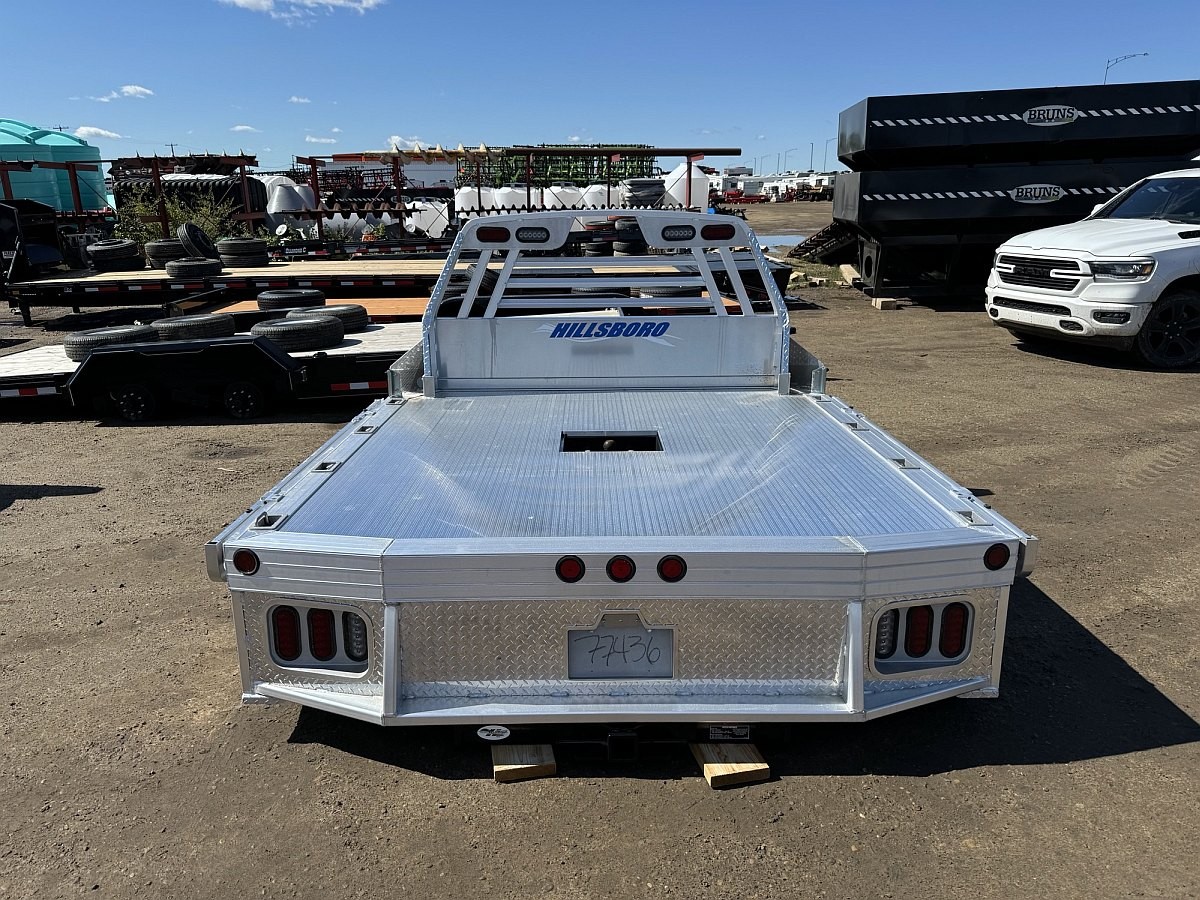

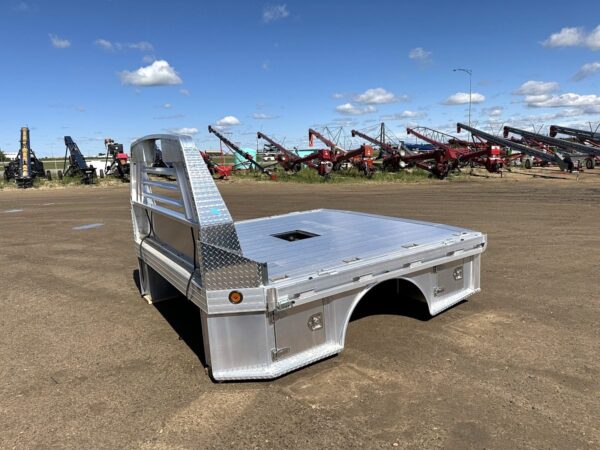

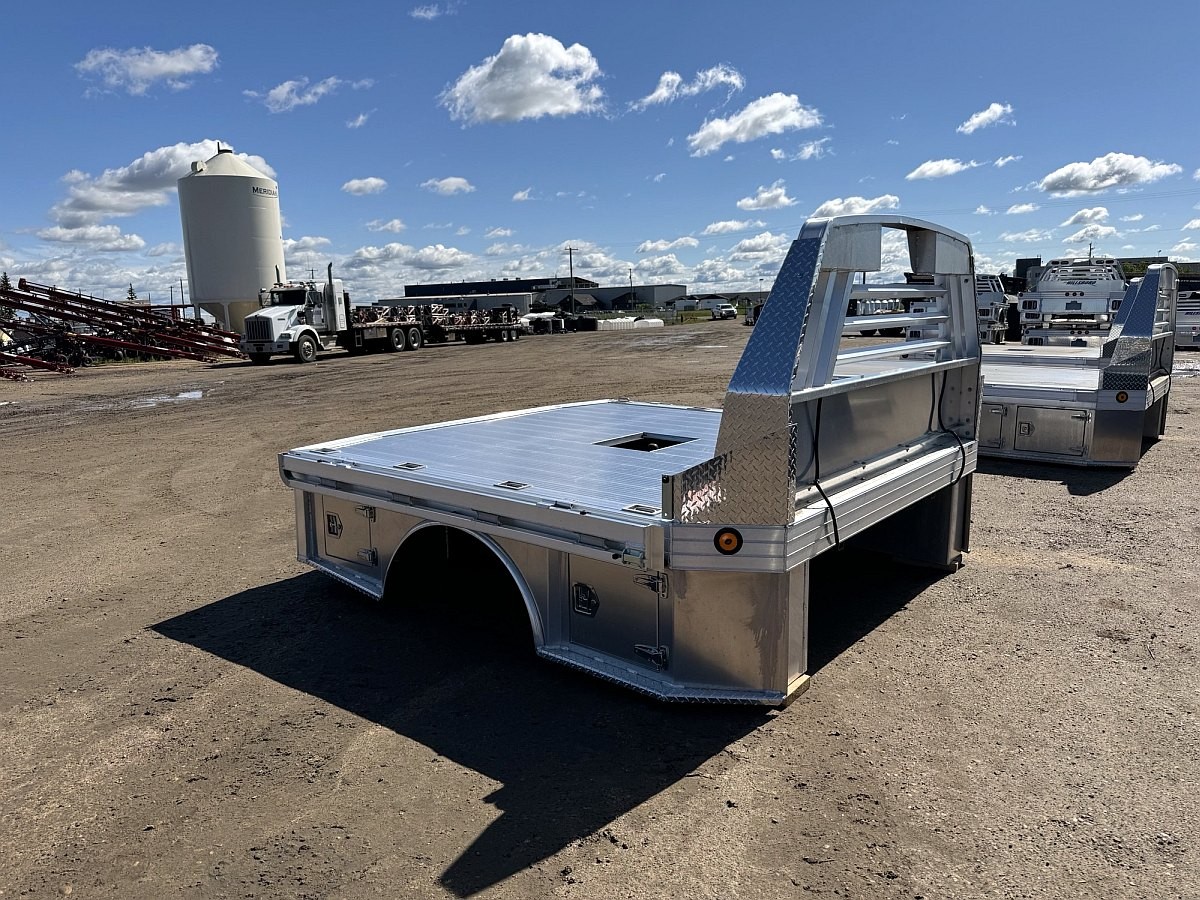

Hillsboro 4000 Series Aluminum Truck Bed
Description
The Hillsboro 4000 Series Aluminum Truck Bed is a heavy-duty flatbed designed for long-bed Ford and GM pickup trucks. Built with an aluminum extruded floor and structural I-beam crossmembers, this bed is intended for commercial and utility applications requiring strength, durability, and integrated towing capability.
Key Specifications
| Specification | Details |
|---|---|
| Make | Hillsboro |
| Series | 4000 |
| Model | ALT96-102-38/42-56-4Box-4000 F/G |
| Additional Model Ref. | 77436 |
| Bed Width | 96″ (8 ft) |
| Bed Length | 102″ (8 ft 6 in approx.) |
| Frame Width | 38″ / 42″ |
| Cab-to-Axle | 56″ |
| Vehicle Fitment | Ford / GM Dual Long Bed |
| Weight | Approx. 925 lbs |
Construction & Materials
- 4″ × 2″ tube steel long sills
- 3″ aluminum I-beam extrusion crossmembers
- Aluminum extruded floor
- Recessed aluminum castings
- Treadbrite tailboard
- Tapered rear with integrated step
Headache Rack & Cargo Management
- Adjustable-height headache rack
- Square tube louvers
- 3″ extruded tie rail with stake pockets
Toolboxes & Weather Protection
- Four integrated toolboxes
- EPDM closed-cell foam seals
- Weather-resistant construction
Towing & Hitch Configuration
- 25,000 lb receiver hitch
- 2½” receiver tube
- 2″ reducer included
- 30,000 lb gooseneck hitch
- 2-5/16″ ball plate
- Flush-mount cover
Electrical & Lighting
- Sealed wiring harness
- LED lighting
Compliance & Testing
-
Pickup beds tested to SAE standards (manufacturer-stated)
Important Notes
- Fitment must be confirmed based on vehicle configuration
- Specifications reflect typical configuration and may vary
- Installation and vehicle compatibility should be reviewed prior to order confirmation
Availability & Order Review
This product is subject to availability and fitment confirmation prior to order finalization. Delivery and installation details are coordinated during order review.
