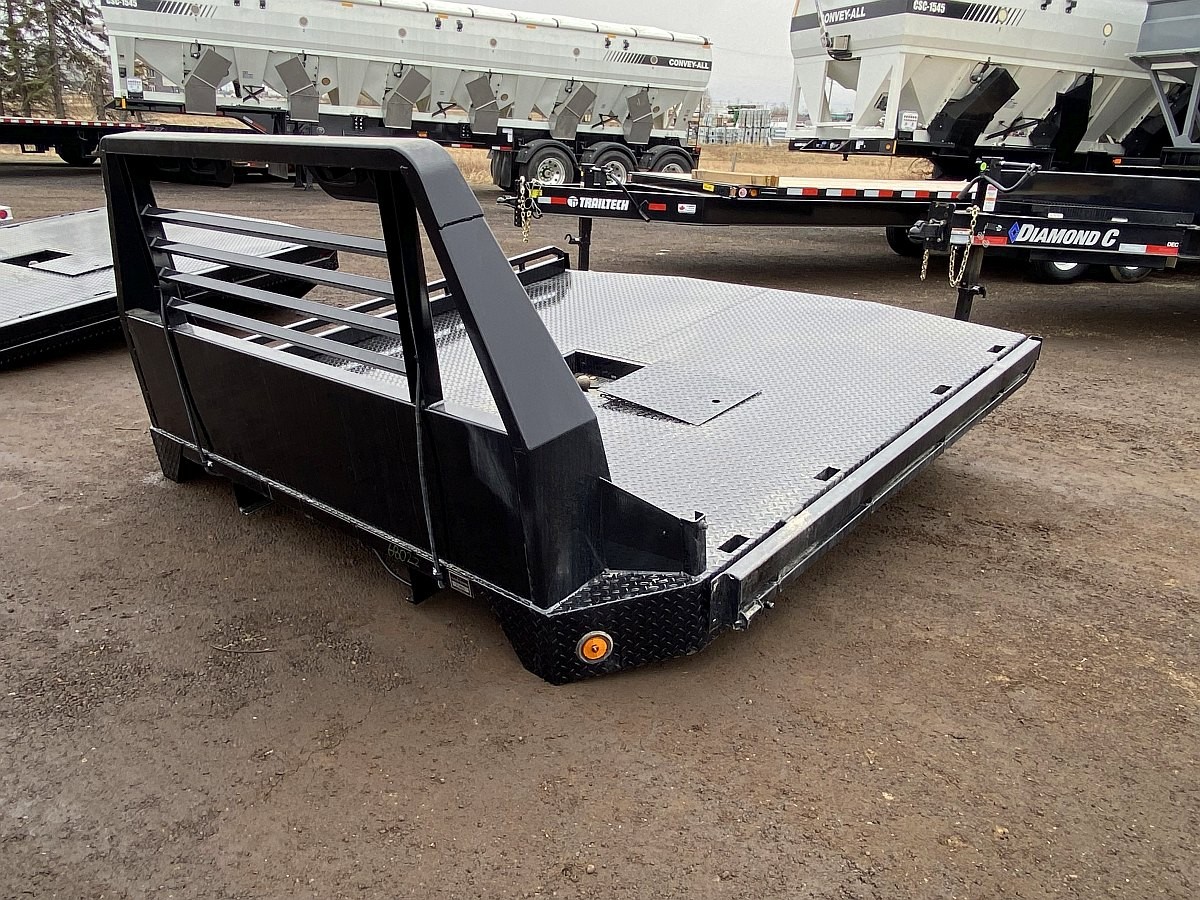

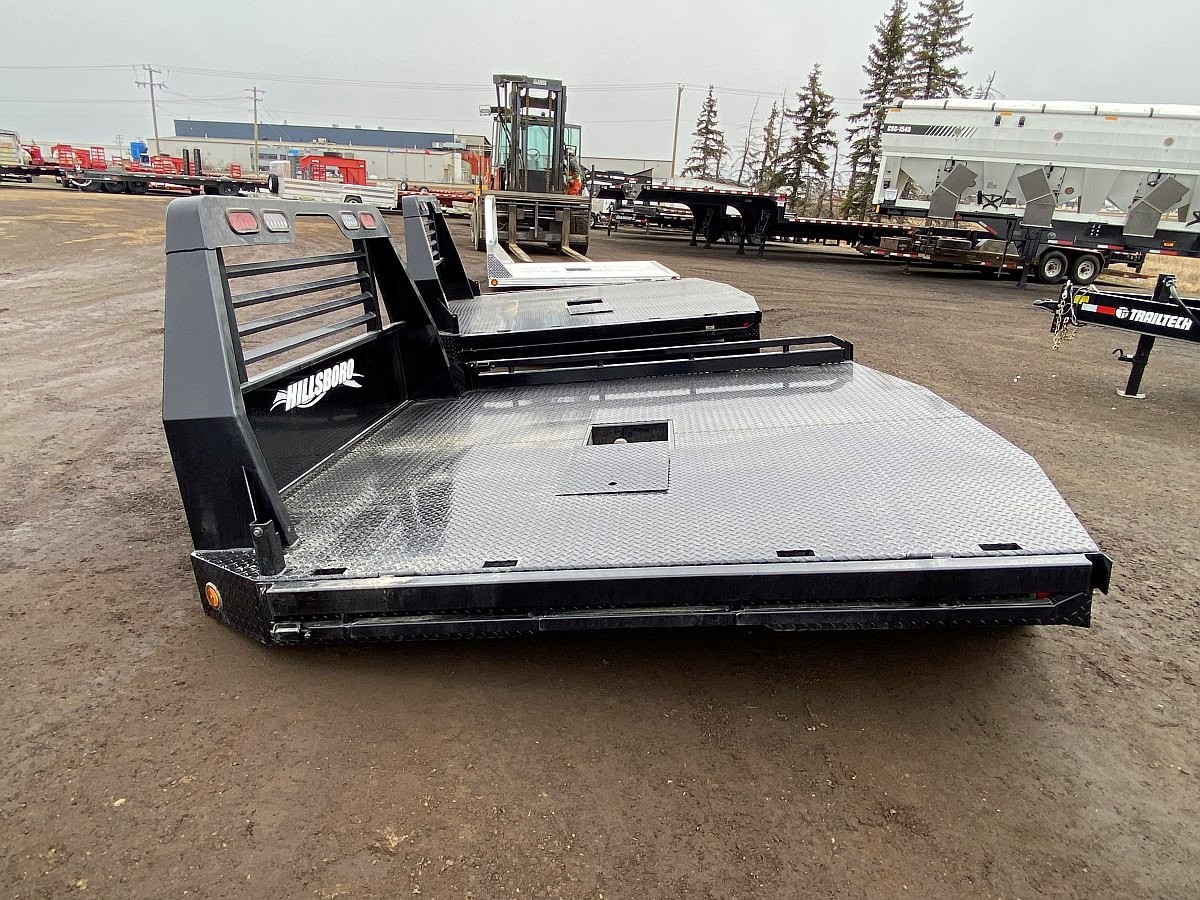

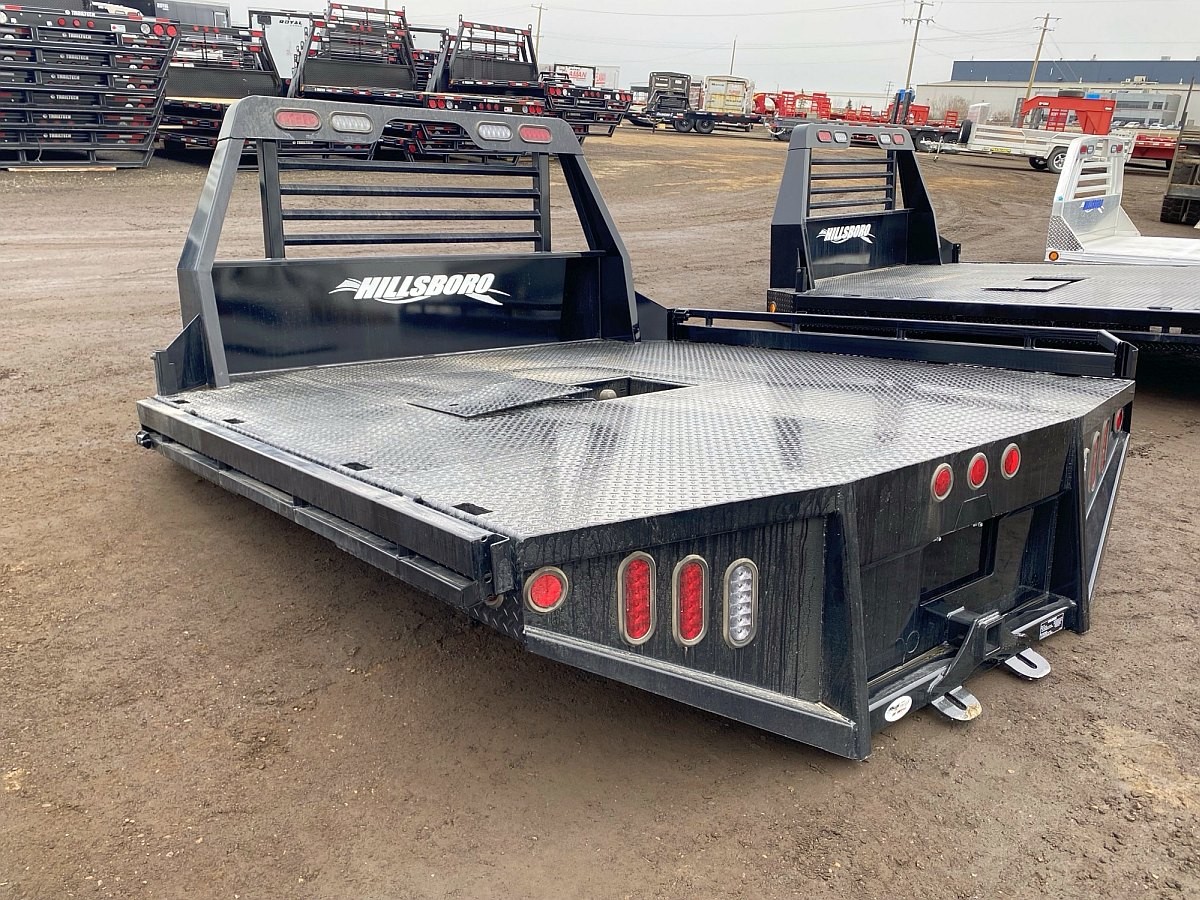

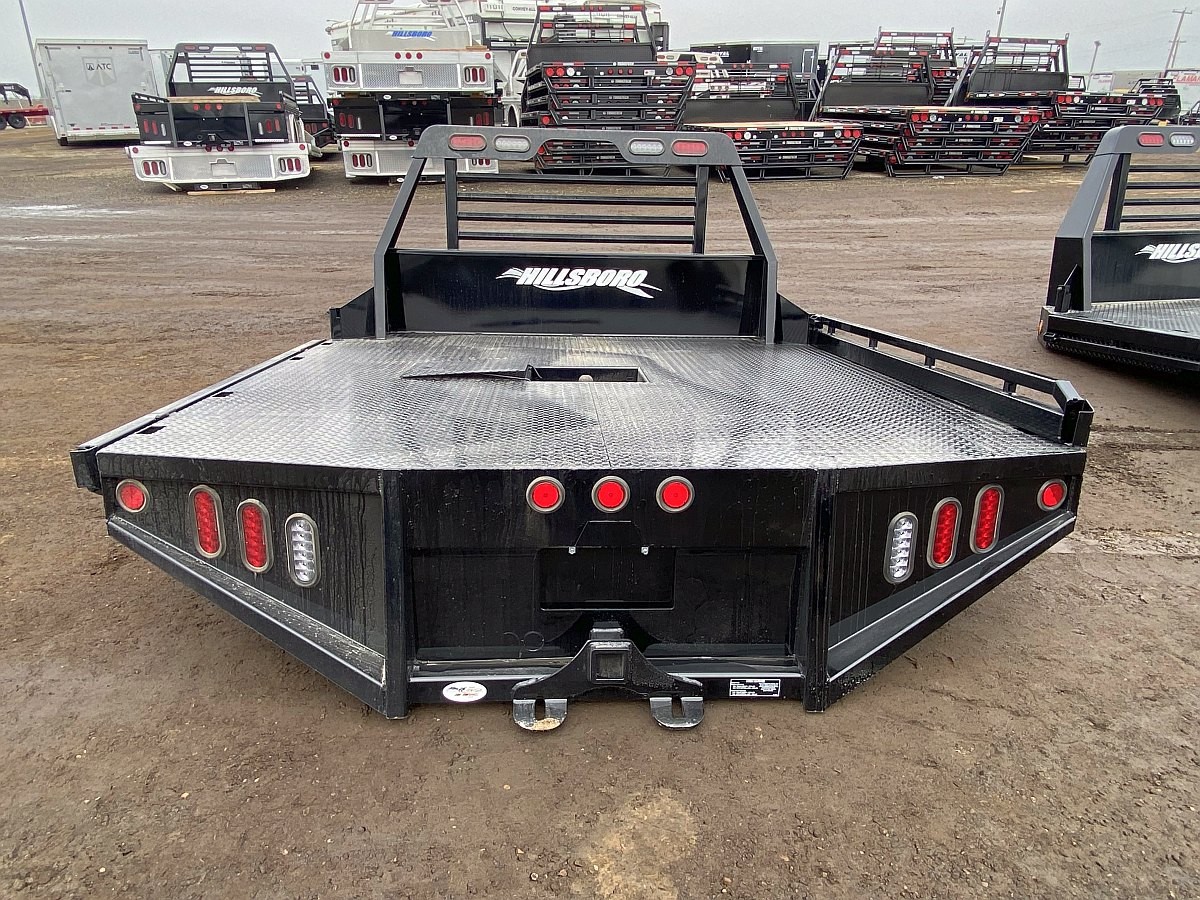

Hillsboro G2 Steel Truck Bed
Description
The Hillsboro G2 Steel Truck Bed is a heavy-duty flatbed designed for work applications requiring structural strength, towing capability, and secure load management. Built with steel treadplate flooring and reinforced framing, this bed is suitable for commercial, agricultural, and fleet use.
General Specifications
| Specification | Details |
|---|---|
| Make | Hillsboro |
| Series | G2 |
| Model | SSLT96-102-38-56-40 |
| Product Code | 76030 |
| Bed Size | 96″ (W) × 102″ (L) |
| Width | 8 ft |
| Length | 8 ft |
| Weight | Approx. 1,170 lbs |
| Application | Dual long bed (Ford) |
Frame & Construction
- 5″ structural channel long sills
- 2½” steel crossmembers
- Frame width: 38″
- Cab-to-axle measurement: 56″

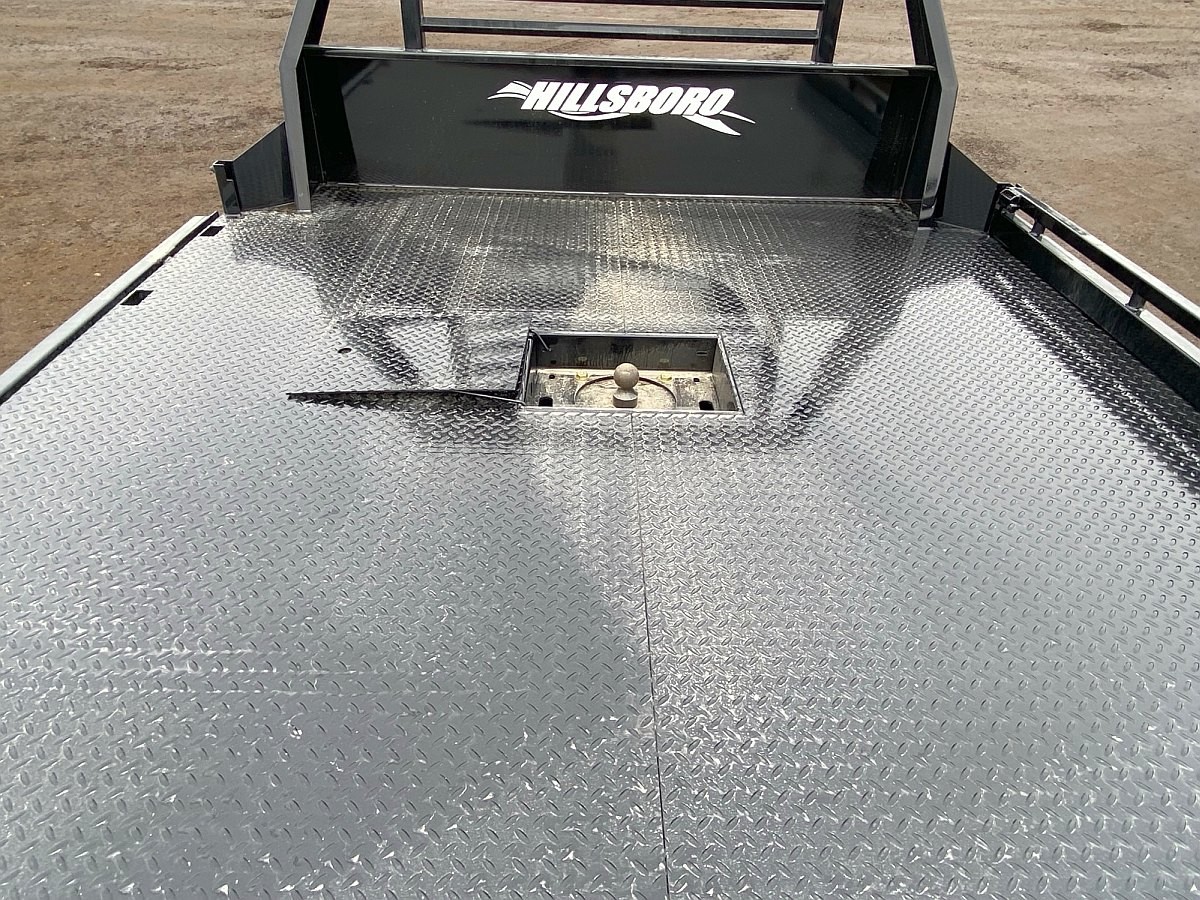

- 1/8″ steel treadplate floor
- Epoxy primer with black polyurethane paint finish

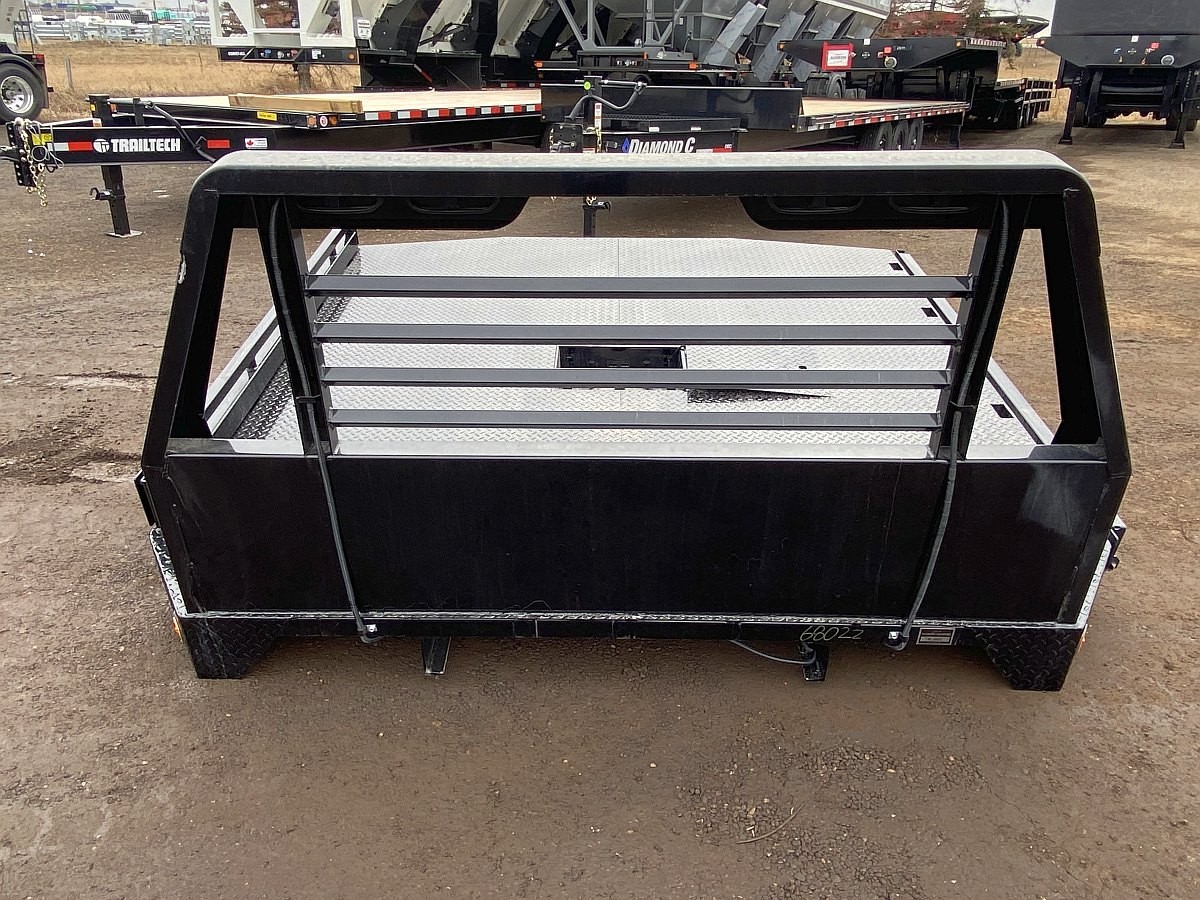

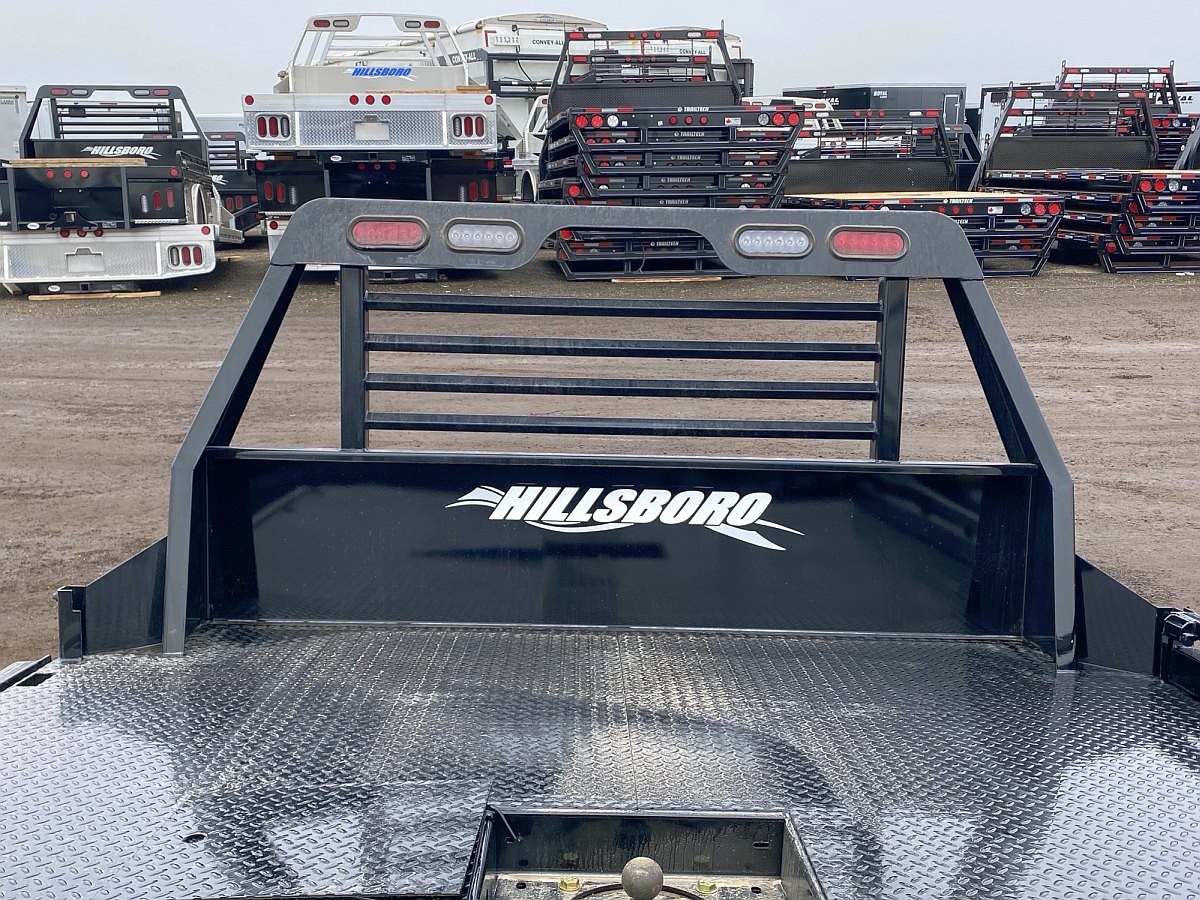

Headache Rack
- 40″ headache rack
- 1¼” square tube louvers
- Integrated board holders across front and rear
Sides & Load Management
- 6″ fold-down sides
- Multiple tie-down locations
- Inboard stake pockets
- Board holders across front and back
Lighting & Electrical
- LED lighting system
- Dual tag lights
- Sealed wiring harness
Towing & Hitch System
- 30,000 lb gooseneck ball plate
- Flush-mount gooseneck cover

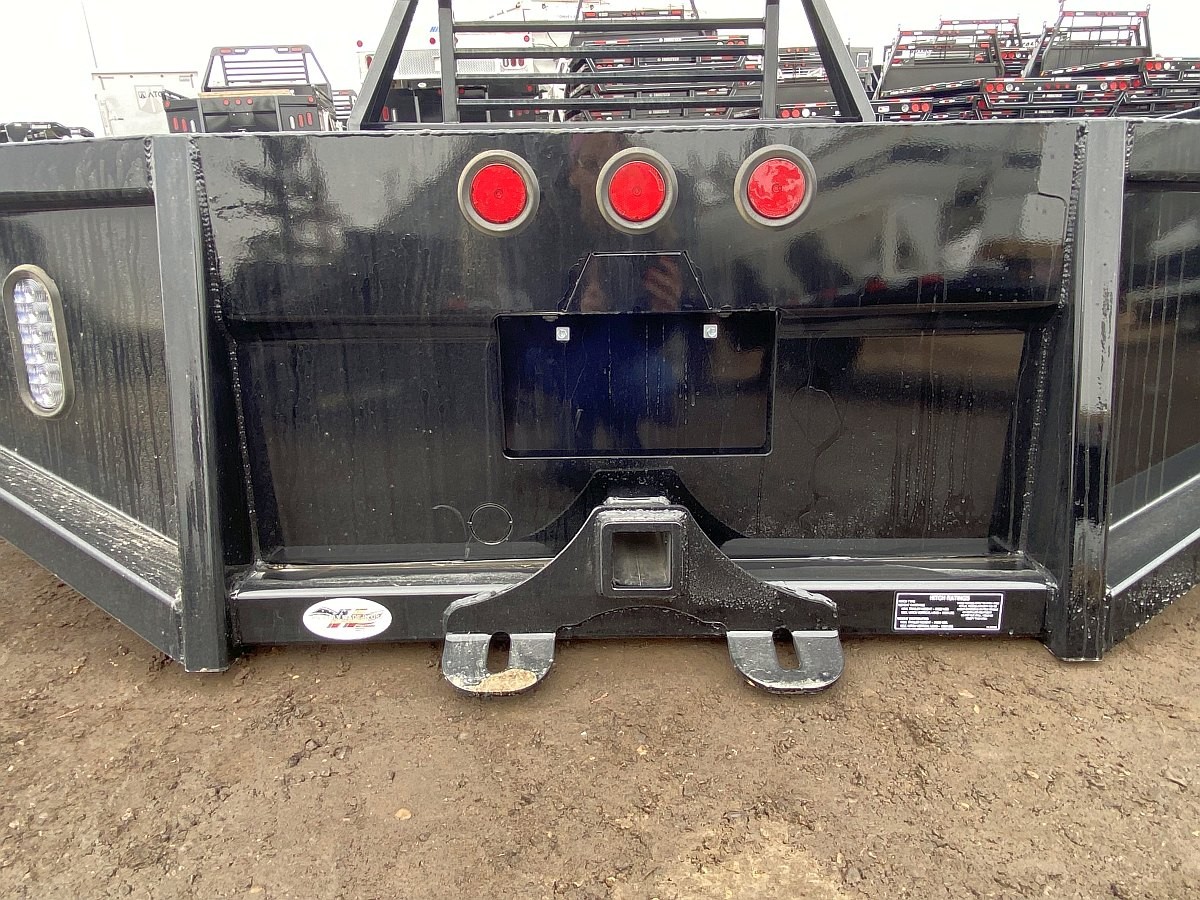

- Rear tailboard with 2½” receiver tube
- Receiver rating: 25,000 lbs maximum trailer weight
- Maximum vertical load: 2,500 lbs
Important Notes
- Specifications reflect standard configuration
- Compatibility depends on vehicle fitment
- Installation requirements should be verified prior to purchase
Availability & Order Review
Availability, pricing, and delivery are confirmed during order review. Installation and transport logistics may vary based on location and vehicle configuration.
